Kitchen Ticket Examples

This document will show you examples of kitchen and bar tickets using different fonts, spacing, and headers

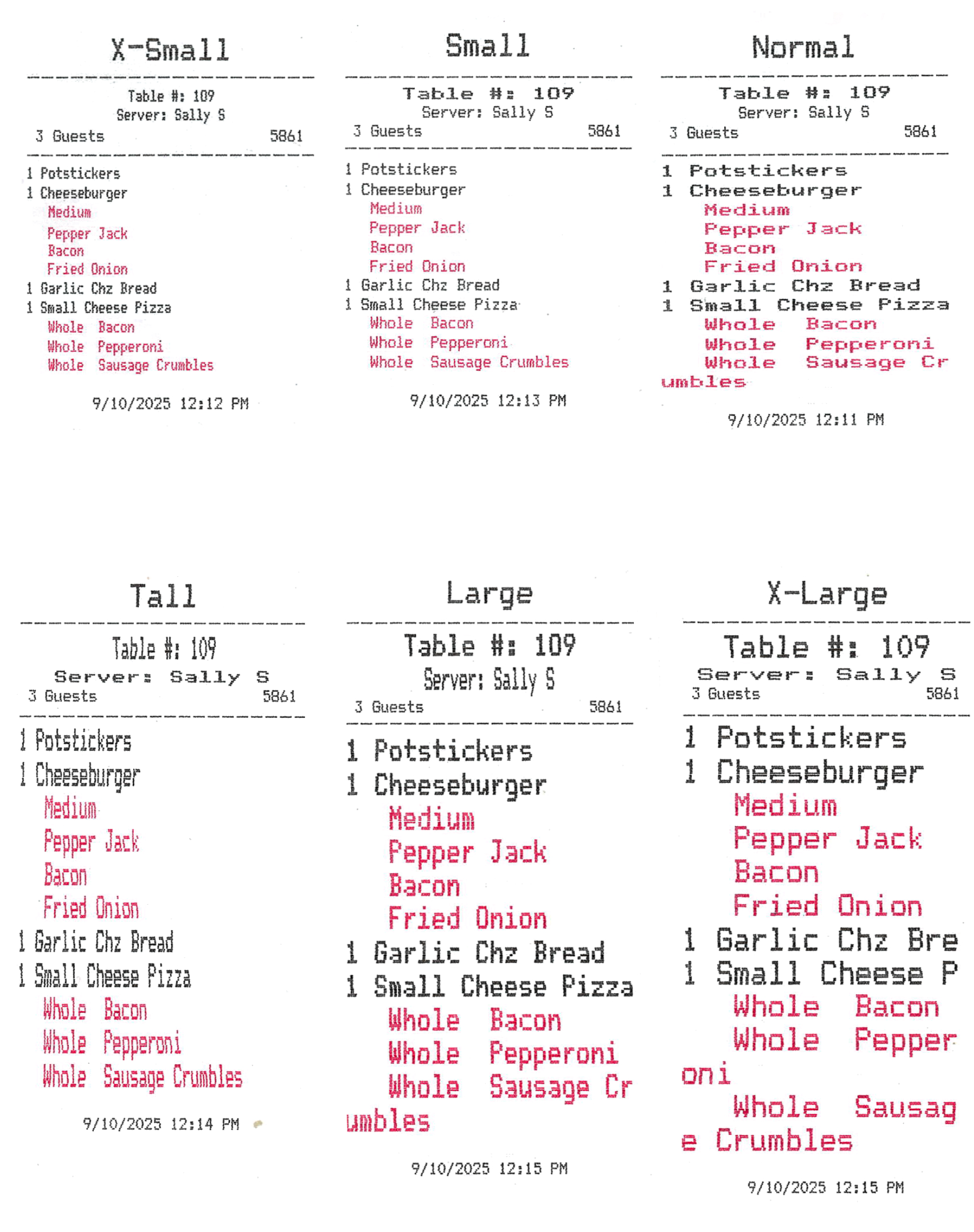

Impact Printer Fonts

• Here is an example of each of the 6 different font printed on an impact printer that is most often used in the kitchen
• The chart will tell you how many characters will fit on 1 line before it wraps to a second line
  • Note: only modifiers and notes will wrap. The parent item will cut off letters

Font Size	Characters Before Wrapping
X-Small (New)	38
Small	31
Normal (Default)	18
Tall (formerly "Big")	31
Large (formerly "Huge")	18
X-Large (New)	14

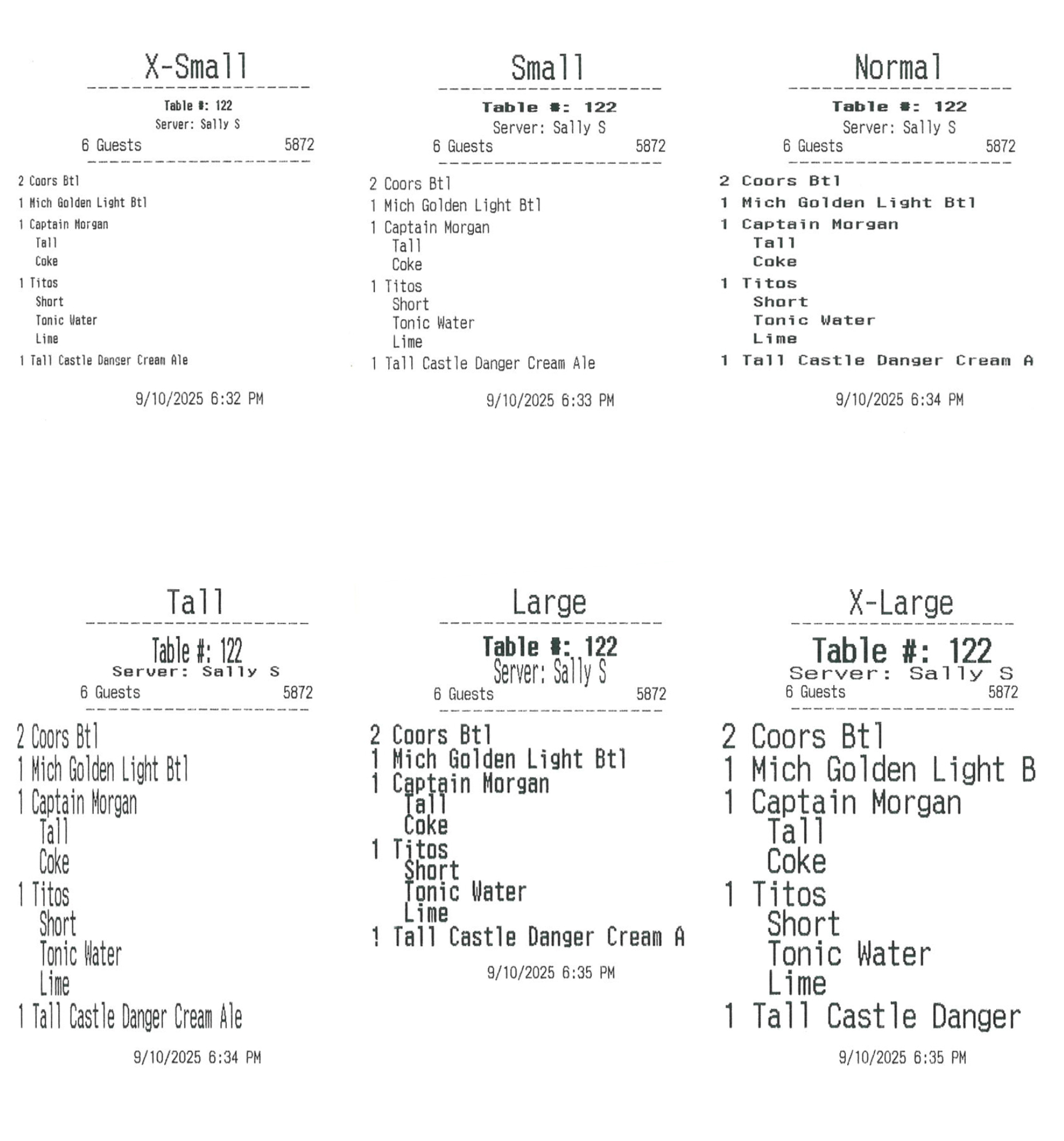

Thermal Printer Fonts

• Here is an example of each of the 6 different font printed on a thermal printer that is most often used at the bar and for customer receipts
• The chart will tell you how many characters will fit on 1 line before they are cut off


Font Size	Characters Before Cutting Off
X-Small (New)	54
Small	40
Normal (Default)	26
Tall (formerly "Big")	40
Large (formerly "Huge")	26
X-Large (New)	19

Spacing Between Items

• The examples below all use the NORMAL font
• They all have 0 spacing between guests
• The space in between ranges from 0-10

Spacing Between Groupings

• The examples below all use the NORMAL font
• They all have 2 spacing between items
• The space in between ranges from 0-10

Custom Grouping Header examples

• Here are a couple different examples of headers you can use in between groups
• The Custom grouping text only works with "Guest" or "Course" grouping strategy
• The top of the receipt will show you what I typed into the custom grouping text box
  • If you type nothing into the text box it will use the (Default) headers "Guest 1" or "Course 1"
